Product Detail

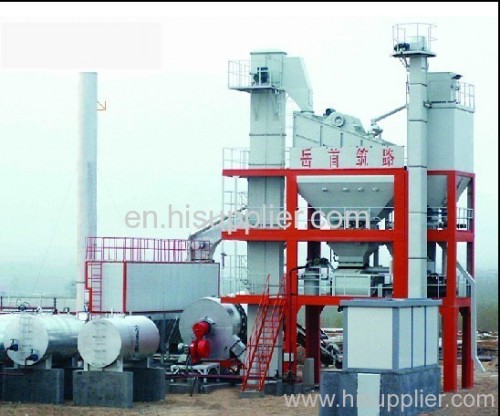

The asphalt mixing plant with capacity 80t/h
170,000-190,000USD
about 10 units 40'HQ container
about 30 days to delivery
Components of Asphalt Mixing Plant LBJ1000
Item | Description | Remarks |
1 | Cold Aggragate Batching Machine and Feeders Group of four components, unit capacity of the aggregate hooper is 8M³ (full hooper), the total capacity is 32M³; Adopts imported varialbe-frequency govornor; Continuous dosing belt & driving reduction motor group, group of four units; Electric vibrator, two units | 4 SETS |
2 | Aggregate Collecting Conveyor Belt 10×500 MM. , ~ Approx. 16 M | 1 SET |
3 | The Aggregate Charging Conveyor Belt, inclined 10×650 MM. , ~ Approx. 8 M; CAPACITY: 100T/H | 1 |
4 | The Drying Drum Ø1540×6680 MM, Running speed: 11.3 RPM, Cylinder on frame, Rotation drive through electric motor and reducing box; Heat-preservation is 50mm rack wool and stainless steel | 1 |
5 | Burner Group for the Dryer (the diesel-oil burner) The Chinese manual control or automatic control oil burber | 1 |
6 | The Mixing Tower The mixing tower with supporting legs, repairing platform, ladder and guardail. | 1 |
7 | The Hot Aggregate Elevator CAPACITY 100 T/H | 1 |
8 | The Filler Bin: 13 M³; | 1 |
9 | The filler elevator capacity: 20 T/H | 1 |
10 | Viberating Screen Unit 4 grades; capacity: 100T/H | 1 |
11 | Hot Aggregate Material Storage Bin 4 numbers , total volume: 10.5 M³ | 1 |
12 | Weighing Device Weighing unit for powder, hot aggregate and bitumen (each has one set) | 3 SETS |
13 | The mixer Mixing capacity: 1000 KG/Batch, motor power: 44kw | 1 |
14 | The Filter (dust catcher) Adopts water dust filter with water pump and the ppelines | 1 |
15 | The Controlling Room (5.19M*2.25M*2.5M) | 1 |
16 | The Bitumen Supplying System The bitumen tank 25t, one unit | 1 |
17 | Bitumen Pump Capacity 15.6 M³/H, pipeline, 3 -WAY VALVES | 1 |
18 | The Thermal Oil Heater: 400,000 Kcal / h | 2 SETS |
19 | The 10t diesel oil tank and 10t heavy oil tank (each has one unit) | 2 SETS |
