Concrete Batch Plant HZS180 manufacturer from China YUESHOU ROAD BUILDING MACHINERY CO., LTD.

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HZS180

Production Capacity: 2 Unit/Units per Month meet...

Delivery Date: 30Days

Motor Power: 247KW

Port: Qingdao

charging capacity: 4500L

Water Supply Model: water pump

discharge way: pnuematic discharging

Means of Transport: Ocean

Packing: 7 units of 40'HQ container ...

Brand Name: Yueshou

Mixing Power: 110KW

Production capacity: 180m3/h

Reclaiming capacity: 3000L

working cycle period: 72s

outline dimension: 63m*27m

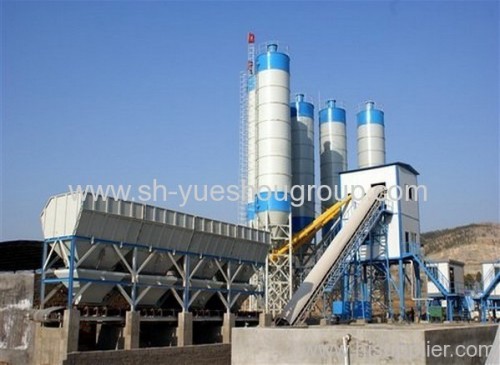

The concrete batch plant with capacity 180m3/h
170,000-190,000USD
9 units container
30 days to delivery
automatic-control

The Components of Concrete Batch Plant HZS180

1. Production capacity of concrete mixing plant HZS180: 180m³/h

2. The total motor power: 210KW (without the screw conveyor)

3. The total weight: 68t (without the cement silo and screw conveyor)

4. The floor area: 63m×27m

5. The mixer of the concrete mixing plant

Model: YJS3000

Type: twin-horizontal force stirrer

Charging volume: 4800L

Discharging volume: 3000L

Discharging height: 4m

Motor power: 55×2KW

6. Aggregate batching and weighing system

Aggregate storage volume: 4×25m³

Scale hopper volume: 4×2500L

Measuring manner: individual measuring

Sensors: 12×2000kg

The power of the driving drum: 11KW

Measuring precision: ±2/100

Strap conveyer belt: 1.6M/S

7. Charging elevating belt

Belt speed: 2.5m/s

Belt width: 1000mm

Delivery capacity: 1200t/h

Motor Power: 55KW

Volume of the aggregate temporary surge bin: 4.8m³

8. Cement weighing system

Scale hopper volume: 1600L

Weighing rang: 0-1600kg

Weighing precision: ±1/100

Sensor: 3×2000kg

9. Flyash weighing system

Scale hopper volume: 850L

Weighing range: 0-765kg

Weighing precision: ±1/100

10. Mineral powder weighing system

Scale hopper volume: 600L

Weighing range: 0-540kg

Weighing precision: ±1/100

11. Water weighing system

Water scale hopper volume: 1000L

Weighing precision: ±1/100

Pump motor power: 8.5KW

Need to build a water pool for the water supply.

12. Additive weighing system

Scale hopper: 75L

Additive storage: 4m³

Weighing precision: ±1/100

Pump motor power: 0.75KW

13. Pneumatic system

Air compressor: 15KW

14. Screw conveyer for the mixing plant

Format: Φ325×11000mm, Capacity: 90t/h, Motor power: 18.5KW, three units

15. Powder storage for the mixing plant

Specification: 200t piece-type bin, three units

16. The control room and controlling system

Central controlling room with fully- automatic control system
