Concrete Mixing Plant HZS240 manufacturer from China YUESHOU ROAD BUILDING MACHINERY CO., LTD.

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HZS240

Production Capacity: 2 Unit/Units per Month meet...

Delivery Date: 30Days

Motor Power: 331KW

Port: Qingdao

charging capacity: 6000L

Water Supply Model: water pump

discharge way: pnuematic discharging

Means of Transport: Ocean

Packing: 8 units of 40'HQ container ...

Brand Name: Yueshou

Mixing Power: 150KW

Production capacity: 240m3/h

Reclaiming capacity: 4000L

working cycle period: 72s

outline dimension: 69m*27m

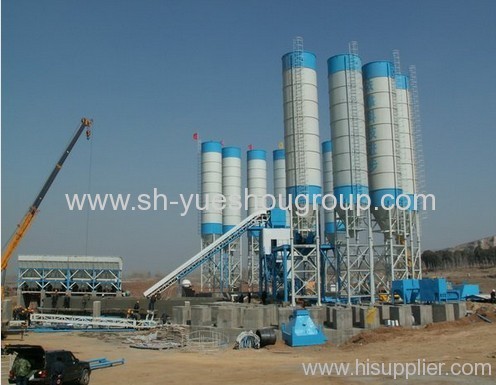

The concrete mixing plant with capacity 240m3/h
220,000-240,000USD
9 units container
30 days to delivery
automatic-control

The Components of Concrete Mixing Plant HZS240

1. Production capacity of concrete mixing plant HZS240: 240m³/h

2. The total motor power: 294KW (without the screw conveyor)

3. The total weight: 72t (without the cement silo and screw conveyor)

4. The floor area: 69m×27m

5. The mixer of the concrete batching plant

Model: YJS4000

Type: twin-horizontal force stirrer

Charging volume: 6400L

Discharging volume: 4000L

Discharging height: 4m

Motor power: 75×2KW

6. Aggregate batching and weighing system

Aggregate storage volume: 4×30m³

Scale hopper volume: 4×3.2L

Measuring manner: individual measuring

Sensors: 16×2000kg

The power of the driving drum: 15KW

Measuring precision: ±2/100

Strap conveyer belt: 2m/s

7. Charging elevating belt

Belt speed: 2.5m/s

The width of the belt: 1000mm

Delivery capacity: 1800t/h

Motor Power: 75KW

Volume of the aggregate temporary surge bin: 4.8m³

8. Cement weighing system

Scale hopper volume: 2000L

Weighing rang: 0-2000kg

Weighing precision: ±1/100

Sensor: 3×2000kg

9. Flyash weighing system

Scale hopper volume: 1350L

Weighing range: 0-1200kg

Weighing precision: ±1/100

10. Mineral powder weighing system

Scale hopper volume: 900L

Weighing range: 0-800kg

Weighing precision: ±1/100

11. Water weighing system

Water scale hopper volume: 1300L

Weighing precision: ±1/100

Pump motor power: 8.5KW

Need to build a water pool for the water supply.

12. Additive weighing system

Scale hopper: 90L

Additive storage: 4m³

Weighing precision: ±1/100

Pump motor power: 0.75KW

13. Pneumatic system

Air compressor: 18.5KW

14. Screw conveyer for the mixing plant

Format: Φ325×11000mm, Capacity: 90t/h, Motor power: 18.5KW, four units

15. Powder storage for the mixing plant

Specification: 200t piece-type bin, four units

16. The control room and controlling system

Central controlling room with fully- automatic control system
