Concrete Mixing Plant HZS150 manufacturer from China YUESHOU ROAD BUILDING MACHINERY CO., LTD.

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HZS150

Production Capacity: 2 Unit/Units per Month meet...

Delivery Date: 30Days

Motor Power: 227KW

Port: Qingdao

charging capacity: 4500L

Water Supply Model: water pump

discharge way: pnuematic discharging

Means of Transport: Ocean

Packing: 7 units of 40'HQ container ...

Brand Name: Yueshou

Mixing Power: 110KW

Production capacity: 150m3/h

Reclaiming capacity: 3000L

working cycle period: 72s

outline dimension: 38m*24m

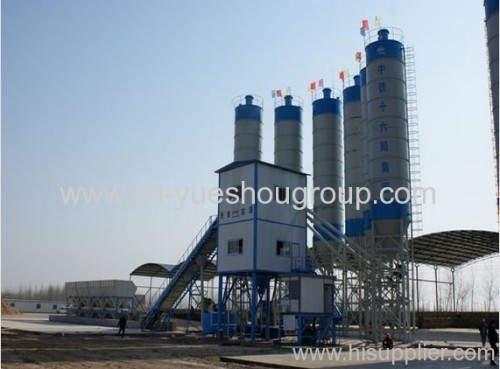

The concrete mixing plant with the capacity of 150m3/h
160,000-180,000USD
8 units container
30 days to delivery

The Components of Concrete Mixing Plant HZS150

1. Production capacity of concrete mixing plant HZS150: 150m³/h

2. The total motor power: 190KW (without the screw conveyor)

3. The total weight: 62.5t (without the cement silo and screw conveyor)

4. The floor area: 38m×24m

5. The mixer of the mixing plant

Model: YJS3000

Type: twin-horizontal force stirrer

Charging volume: 4000L

Discharging volume: 2500L

Discharging height: 4m

Motor power: 55×2KW

6. Aggregate batching and weighing system

Aggregate storage volume: 4×20m³

Scale hopper volume: 4×1800L

Measuring manner: individual measuring

Sensors: 12×2000kg

Measuring precision: ±2/100

Strap conveyer belt: 1.6M/S

The power of the driving drum: 7.5KW

7. Charging elevator of the aggregate

Belt speed: 2.5m/s

The belt width: 1000mm

Delivery capacity: 1200t/h

Motor Power: 37KW

8. Cement weighing system

Scale hopper volume: 1500L

Weighing rang: 0-1500kg

Weighing precision: ±1/100

Sensor: 3×1500kg

9. Flyash weighing system

Scale hopper volume:800L

Weighing range: 0-720kg

Weighing precision: ±1/100

10. Mineral powder weighing system

Scale hopper volume:600L

Weighing range: 0-480kg

Weighing precision: ±1/100

11. Water weighing system

Water scale hopper volume: 800L

Weighing precision: ±1/100

Pump motor power: 5.5KW add 3KW

Need to build a water pool for the water supply.

12. Additive weighing system

Scale hopper: 70L

Additive storage: 4m³

Weighing precision: ±1/100

Pump motor power: 0.75KW

13. Pneumatic system

Air compressor: 15KW

14. Screw conveyer for this mixing plant

Format: Φ325×11000mm, Capacity: 90t/h, Motor power: 18.5KW, three units

15. Powder storage bin

Specification: 200t piece-type bin, three units

16. The control room and controlling system

Central controlling room with fully- automatic control system
