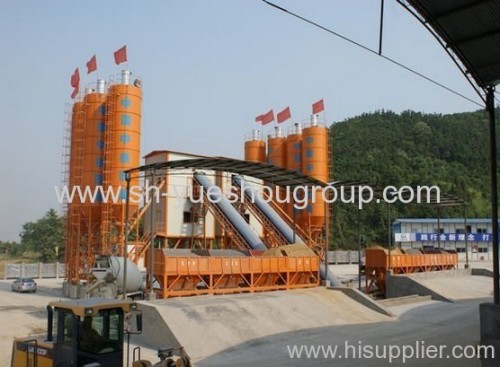

Concrete Mixing Plant HZS90 manufacturer from China YUESHOU ROAD BUILDING MACHINERY CO., LTD.

Payment Terms:	T/T,L/C
Place of Origin:	, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HZS90

Production Capacity: 3 Unit/Units per Month meet...

Delivery Date: 30Days

Motor Power: 174KW

Port: Qingdao

charging capacity: 3200L

Water Supply Model: water pump

discharge way: pnuematic discharging

Means of Transport: Ocean

Packing: 5 units of 40'HQ container ...

Brand Name: Yueshou

Mixing Power: 74KW

Production capacity: 120m3/h

Reclaiming capacity: 2000L

working cycle period: 72s

outline dimension: 69m*27m

The concrete mixing plant with capacity 90m3/h
100,000-120,000USD
6 units container
30 days to delivery
automatic-control

The Components of Concrete Mixing Plant HZS90

1. Production capacity of concrete Mixing plant HZS90: 90m³/h

2. The total motor power: 110KW (without the screw conveyor)

3. The total weight: 39t (without the cement silo and screw conveyor)

4. The floor area: 26m×19m

5. The mixer of the concrete mixing plant

Model: YJS1500

Type: twin-horizontal force stirrer

Charging volume: 2400L

Discharging volume: 1500L

Discharging height: 3.8m

Motor power: 30KW×2

6. Aggregate batching and weighing system

Aggregate storage volume: 4×15m³

Scale hopper volume: 4×1400L

Measuring manner: individual measuring

Power: 7.5KW

Measuring precision: ±2/100

Strap conveyer belt: 1.25M/S

7. Charging elevating belt

Belt speed: 2.5m/s

Belt width: 800mm

Motor power: 18.5KW

8. Cement weighing system

Scale hopper volume: 700L

Weighing rang: 0-700kg

Weighing precision: ±1/100

Sensor: 3×500kg

9. Flyash weighing system

Scale hopper volume: 400L

Weighing range: 0-360kg

Weighing precision: ±1/100

10. Mineral powder weighing system

Scale hopper volume: 300L

Weighing range: 0-270kg

Weighing precision: ±1/100

11. Water weighing system

Water scale hopper volume: 500L

Weighing precision: ±1/100

Pump motor power: 4KW

Need to build a water pool for the water supply.

12. Additive weighing system

Scale hopper: 40L

Additive storage: 3m³

Weighing precision: ±1/100

Pump motor power: 0.75KW

13. Pneumatic system

Air compressor: 11KW

14. Screw conveyer for the mixing plant

Format: Φ273×11000mm, Capacity: 65t/h, Motor power: 15KW, two units

15. Powder storage bin for the mixing plant

Specification: 150t piece-type bin, two units

16. The control room and controlling system

Central controlling room with fully- automatic control system
