YUESHOU ROAD BUILDING MACHINERY CO., LTD.
|
Asphalt mixing plant
| Payment Terms: | T/T,L/C |
| Place of Origin: | , China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

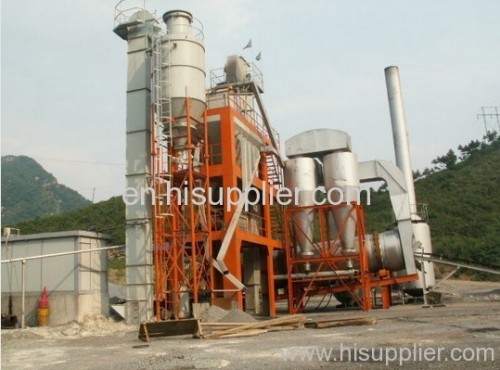

The asphalt mixing plant with capacity of 96t/h
210,000-240,000USD
about 10 units container
about 30 days to delivery
Components of Asphalt Mixing Plant LBJ1200
Item | Description | Remarks |
1 | The Cold Aggregate Batching Machine and Feeders Group of 4 components, the unit capacity of the aggregate hooper is 8M³ (full hooper), the total capacity is 32M³ Adopts imported variable-frequency governor COntinious dosing belt & driving reduction motor group, group of 4 units Electric vibrator: 2 units | 4 SETS |
2 | The aggregate collecting belt conveyor 10 X 650 MM, ~ Approx. 16 M | 1 SET |
3 | The aggregate charging belt conveyor, inclined 10 X 650 MM, ~ Approx. 8 M; CAPACITY: 160T/H | 1 |
4 | The Drying Drum Ø1700×7000 MM, The running speed: 10.9 RPM; Cylinder on frame, Rotation drive through electric motor and reduction box, Heat-preservation is 50mm rack wool and stainless steel | 1 |
5 | The burner Group for the Dryer (diesel oil burner) It is the Chinese manual control or automatic control oil burner | 1 |
6 | The mixing tower THe main tower with the supporting legs, repairing platform and guardail. | 1 |
7 | The Hot aggregate elevator capacity: 120 T/H | 1 |
8 | The filler bin: 13 M³; | 1 |
9 | The capacity of the filler elevator: 25 T/H | 1 |
10 | The Viberating Screen Units 4 grades; capacity: 140T/H | 1 |
11 | The hot aggregate storage bin 4 numbers, the total volume is 10.3 M³ | 1 |
12 | The Weighing Device The weighing unit for the powder, bitumen and hot aggregate (each has one unit) | 3 SETS |
13 | The mixer The mixing capacity: 1200 KG/BACH, the motor power: 44KW | 1 |
14 | The water filter with water pump and the pipelines | 1 |
15 | The Controlling Room (5M*2.2M*2.5M) | 1 |
16 | BItumen Supplying 25t bitumen tanks, two units | 2 SETS |
17 | Bitumen pumps (capacity 15.6 M³/H), pipelines, 3 -way valves | 1 |
18 | The thermal oil heater 400.000 Kcal / h | 1 |
19 | 10T diesel oil tank and 10T heavy oil tank with the pipelines (each has one unit) | 2 SETS |
